Toyota RAV4 Brake Caliper Kit: F50 Four-Piston, XA10–XA60

Six generations, one name, and a 17 inch claim the market does not repeat

Searching the exact kit term returns replacement part catalogues rather than upgrades, so the first job here is to separate a repair from a build. A buyer who needs one factory caliper for a sticking front brake is repairing a car; a buyer who wants a fixed four-piston body is changing the hardware the car left the factory with. Both arrive on the same words, and this file is written for the second buyer while telling the first one where to stop. A Toyota RAV4 brake caliper kit from this record is a custom front-axle set, quoted only after the car and its current disc have been identified.

Which RAV4 is on the order: XA10 to XA60

The name is shared across six generations. This is what the file settles before a rotor row is named.

Two notes belong under the table. Hybrid versions weigh more than their petrol equivalents, and the four-wheel-drive hybrid added a rear-mounted 50 kW motor driving the rear wheels on its own, so front brake work on those cars is not the same task as on a front-drive petrol car. The current compatible-vehicles field also opens with the word “Universal”, which the same page contradicts a few lines later; the Toyota RAV4 model record is the source for the generation list and the weights used here, and it is a vehicle reference rather than an approval for any order.

The platform also grew with each generation, which is why one year range would be useless here: the XA30 ran a 2,560–2,660 mm wheelbase, the XA40 and the XA50 sit at 2,660 mm and 2,690 mm, and the model record lists kerb weights of 1,470–1,520 kg on the XA30, 1,550–1,595 kg on the XA40 and 1,530–1,640 kg on the XA50.

What changes when the floating caliper comes off

A floating caliper – the sliding body carried on guide pins that most RAV4s left the factory with – clamps from one side and lets the disc pull the body across. A fixed four-piston body clamps from both sides at once, and that single change pulls three other parts with it: the bell that carries the disc, the bracket that holds the caliper, and the hose that now has to reach a body sitting in a different place.

So the job is not a swap of one part. Disc offset, hose routing, bleeding sequence and the space between caliper and wheel all move together, which is why the record asks for photographs of the corner as it stands and why the fitted reference below shows the old caliper and the new body on the same car.

On a hybrid the friction brake also shares its work with regenerative braking, and the newest plug-in hybrid generation is documented with enhanced regenerative blending, so bedding-in and pedal feel after fitting look different on those cars from a petrol car of the same shape.

Wheel and rotor rows in this record

What one front set carries

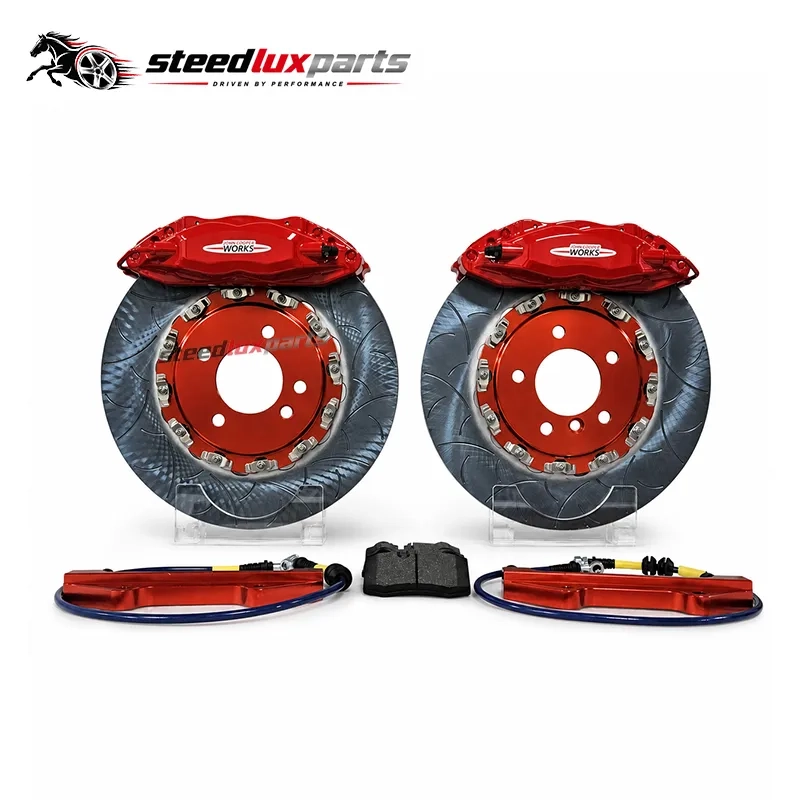

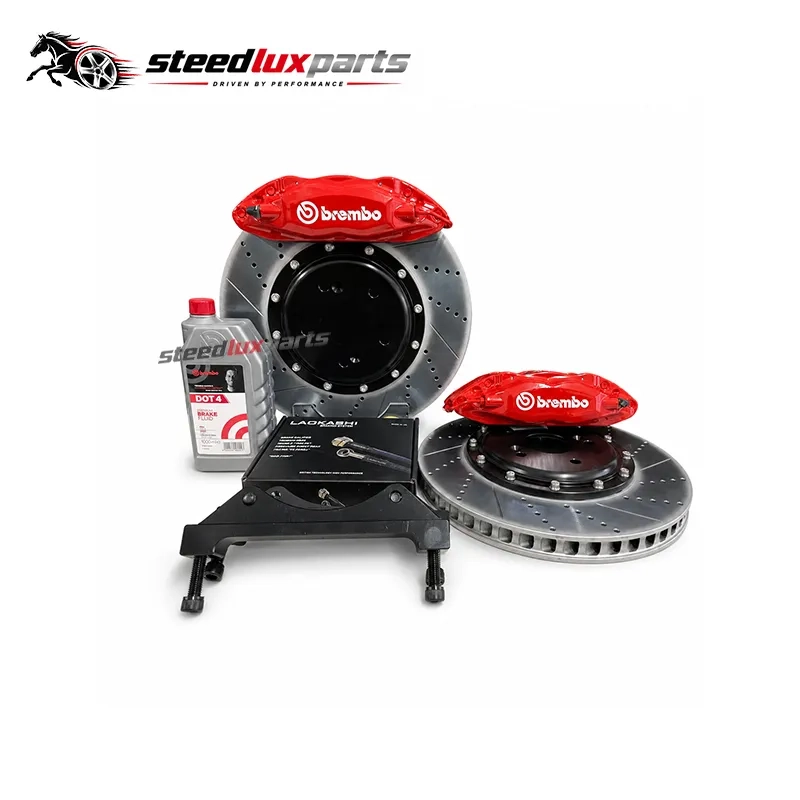

A single front set is 2 calipers, 4 brake pads, 2 custom bells and brackets, 2 hoses and 2 discs, with one fluid bottle where the selected model calls for it. We write whatever is agreed into the quotation and the packing list before machining starts.

The site material record puts the caliper bodies, bells and brackets at 7050 aluminium alloy. No claim goes past that record, because there is no batch sheet or test report for this set to claim it from.

What this page will not claim

This page does not offer the set as an OE replacement, and it publishes no OE, OEM or interchange number for it. The record’s own fitment note says the kit is not listed as an OE brake caliper replacement by one universal part number, and this page keeps that position rather than borrowing a number from a catalogue.

Two more limits hold. No stopping distance, brake bias or temperature figure is published, since no test file exists for this configuration. And F50 is used as the caliper-family label the aftermarket applies to this four-piston pattern, not as a licence, sponsorship or factory warranty.

Generation, weight and drivetrain facts come from the Toyota RAV4 model record, and the regenerative-braking reference describes the system rather than any one car. The vehicle data was checked against those sources and reviewed by the SteedLuxParts fitment desk on 2026-09-23.

How a RAV4 front set is quoted

Manufacturing and quality faults are covered for 5 years, and nothing else is. Wear, bad fitting and unauthorised changes are excluded, and any claim runs through the written policy rather than this page.

Questions that arrive before a RAV4 order

After fitting, and the reference images

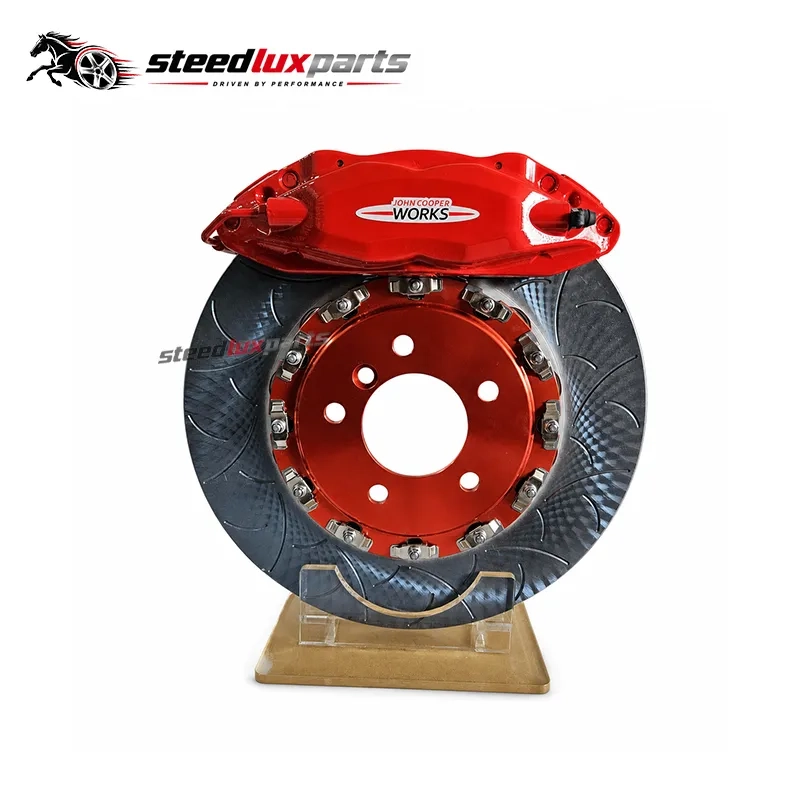

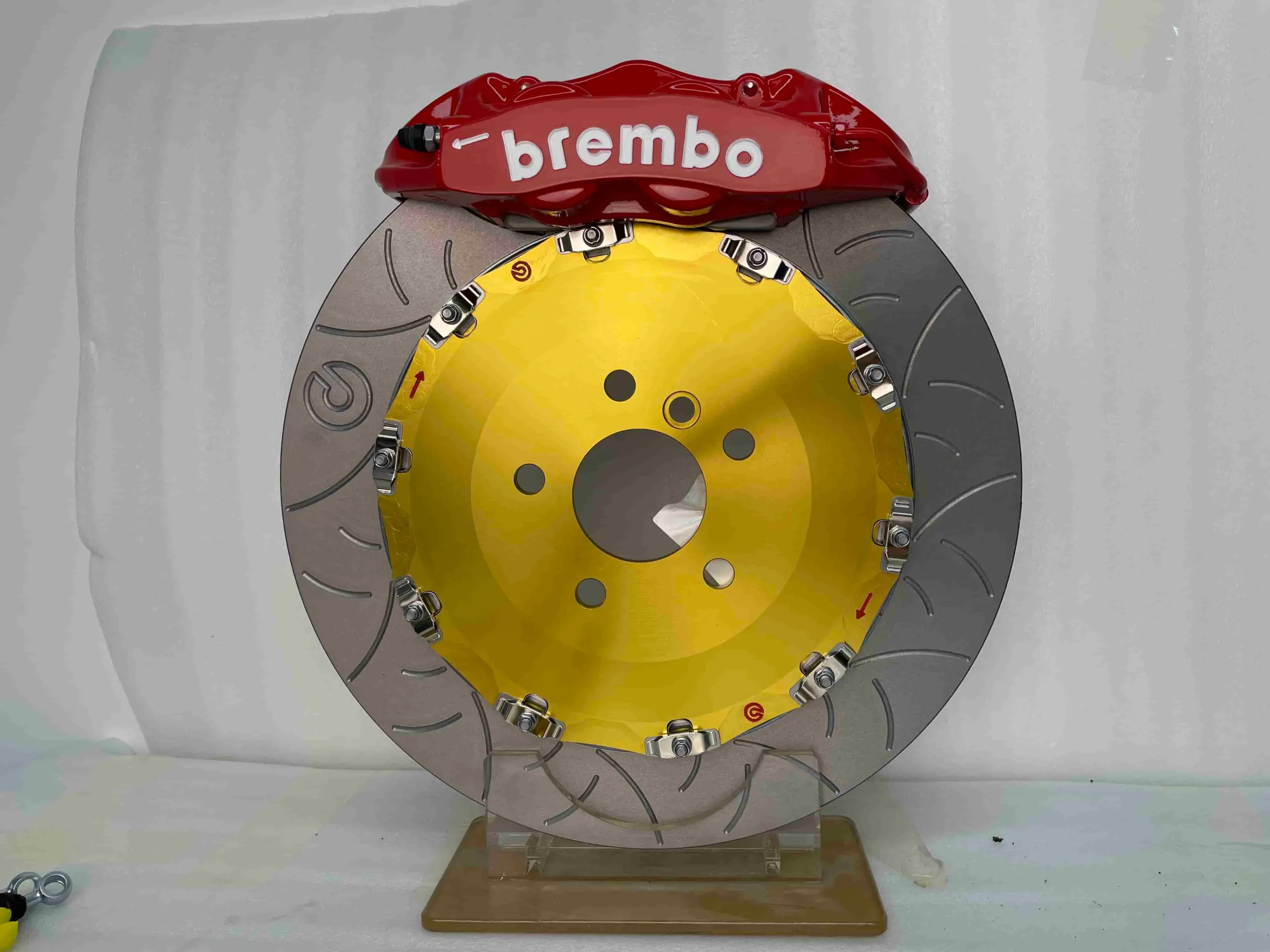

Three reference images sit below: the factory caliper beside the new body, a studio shot of the caliper on its disc, and a disc mounted on a hub with the caliper still in its bag. None of them is a fitment record for a particular RAV4.

Send the VIN with the generation code, the drivetrain, the market version, the current disc diameter and thickness, the wheel diameter, width and offset, spoke and barrel photographs, the hose fitting, photographs of the front corner as it stands, the destination country and the quantity. Our reply names the rotor row, where the bell and bracket sit, and the price of the front set.
