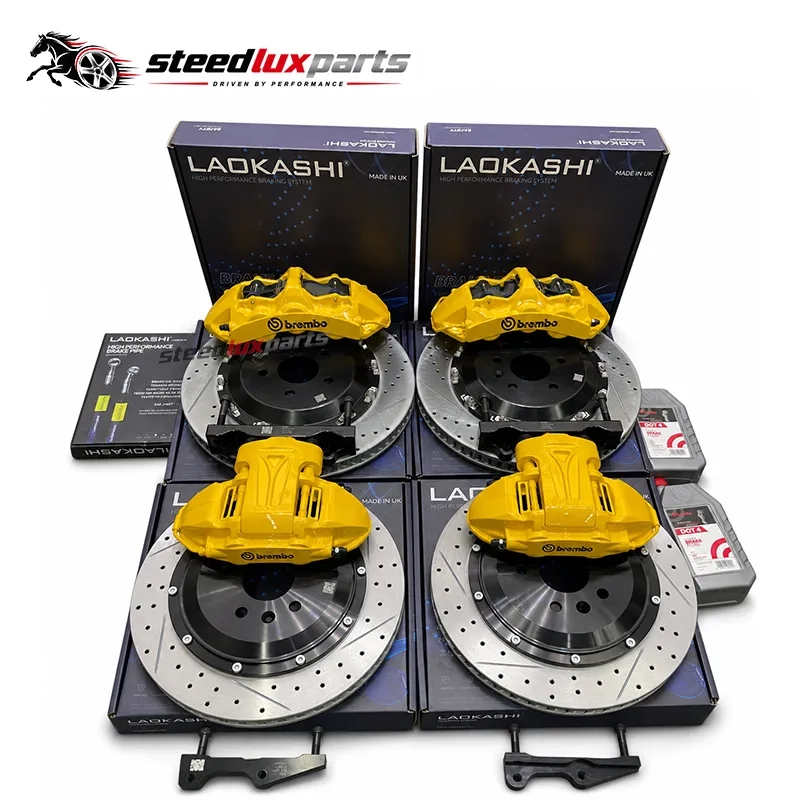

Custom Brake Caliper Kit | GT6 6-Piston Front and EPB Rear

Custom Brake Caliper Kit for GT6 Front and Integrated EPB Rear

Custom brake caliper kit options are available for GT6 six piston front brake applications and integrated electronic parking brake rear applications, each set is prepared according to the vehicle VIN, original brake configuration, wheel geometry and required rotor size, this product is supplied for vehicle owners, modification workshops, repair businesses, distributors and wholesale buyers who need a vehicle specific brake package

The GT6 version is intended for front axle applications using 18 inch or larger wheels, the integrated EPB version is intended for rear axle applications using 17 inch or larger wheels, wheel diameter is only an initial reference because wheel width, offset, inner barrel profile, spoke shape and balance weight position can change the available caliper clearance

Custom Brake Caliper Kit Configurations

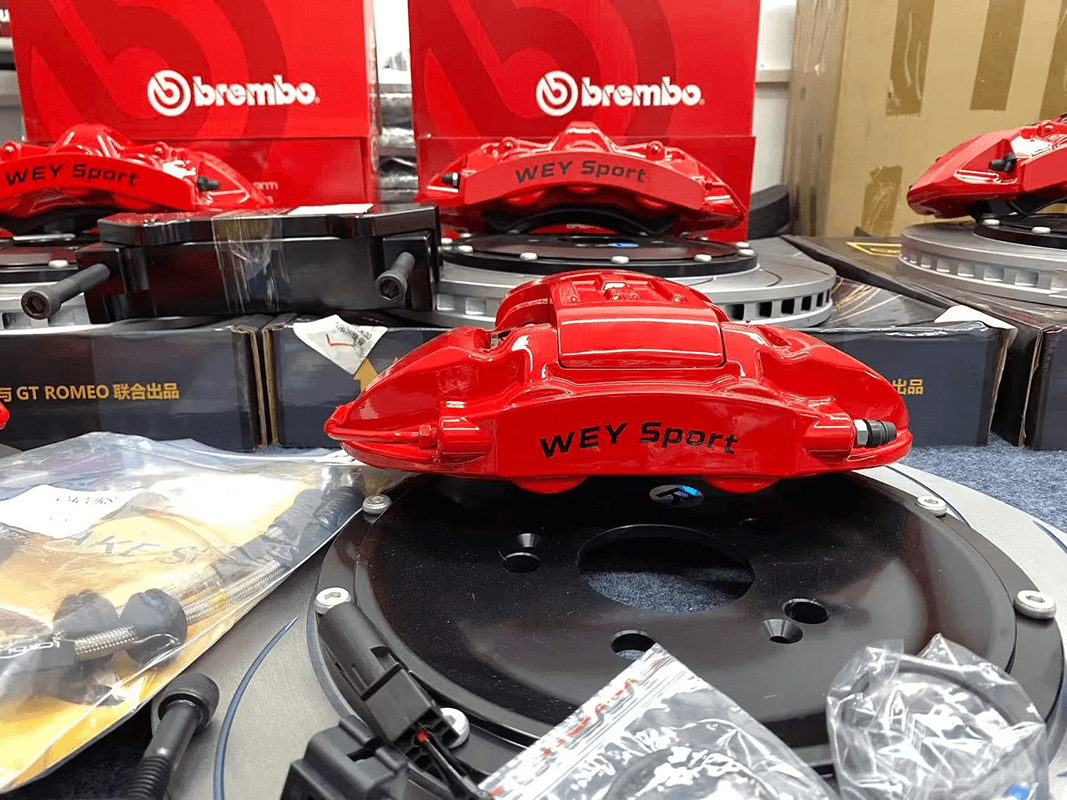

GT6 Six Piston Front Configuration

• GT6 hydraulic six piston front brake calipers
• Front left and right axle configuration
• Custom rotor hats and caliper brackets based on approved vehicle data
• Brake hoses prepared according to the confirmed thread type length and routing
• Candidate rotor sizes selected according to wheel and original brake measurements
• Suitable for individual projects workshop installations and wholesale orders

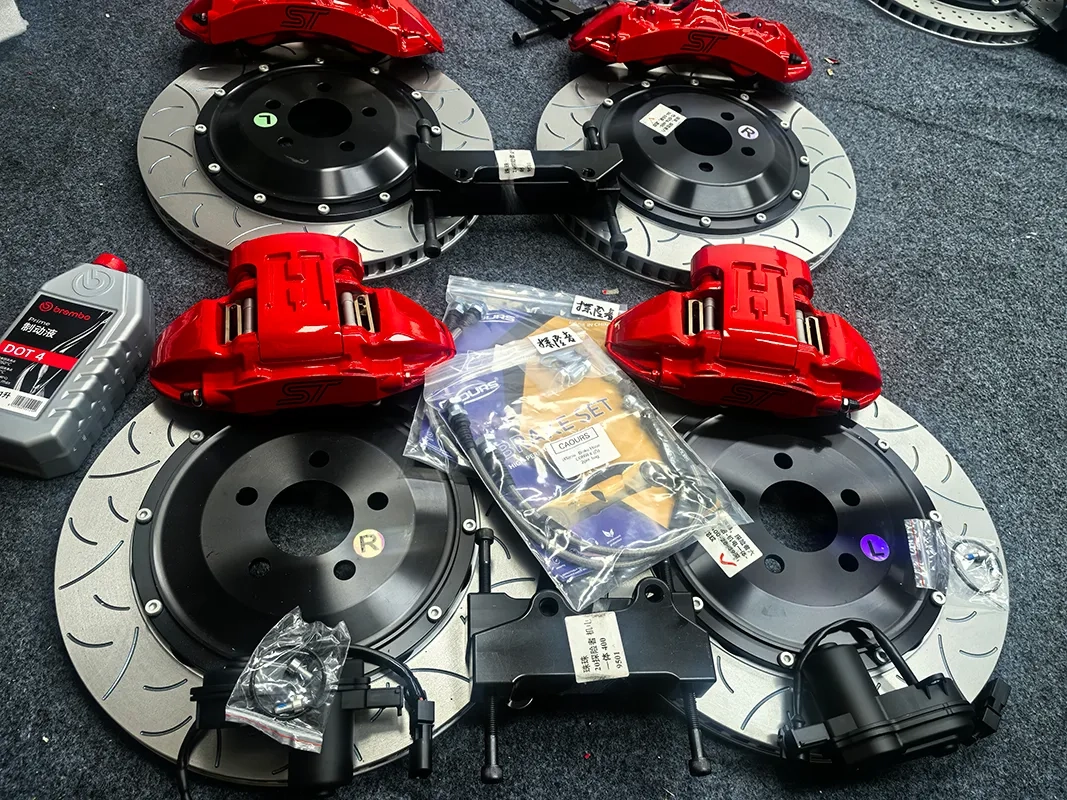

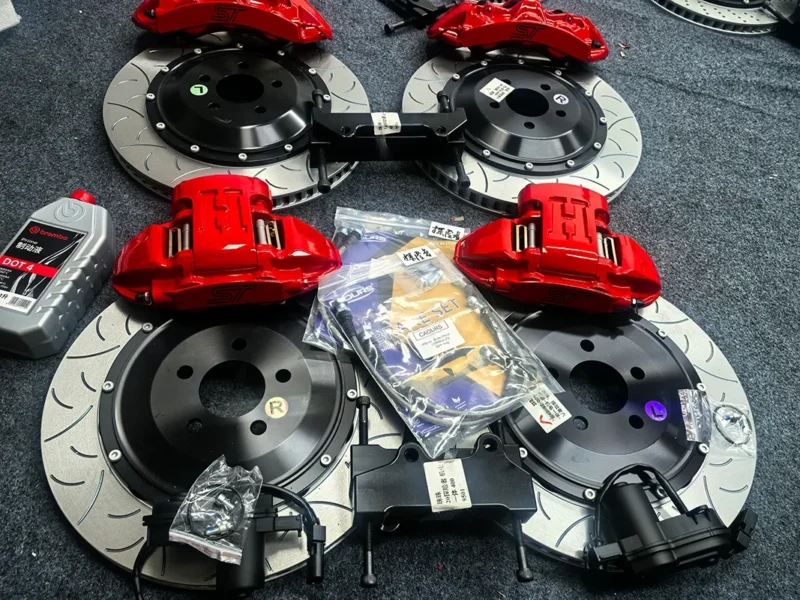

Integrated Electronic Parking Brake Rear Configuration

• Rear left and right calipers with integrated electronic parking brake actuators
• Vehicle specific review of the EPB connector actuator and control procedure
• Custom rear rotor hats brackets and brake hoses after fitment approval
• Service mode calibration fault scanning and function testing may be required
• Rear rotor diameter and thickness must be confirmed before production
• Auto Hold Hill Hold and warning functions require vehicle specific verification

Key Product Benefits

• Custom configuration based on VIN and original brake information
• Front GT6 and rear integrated EPB options available
• Custom rotor hats caliper brackets and brake hoses
• Multiple candidate rotor sizes for different wheel configurations
• Minimum order quantity of one set
• Retail and wholesale purchasing supported
• Replacement brake pad rotor ring hose and hardware details can be confirmed before repeat orders

Preliminary Wheel and Rotor Range

GT6 Front Wheel and Rotor Options

• 18 inch wheel with 345 or 355 mm brake rotor
• 19 inch wheel with 355 or 380 mm brake rotor
• 20 inch wheel with 380 or 405 mm brake rotor
• 21 inch wheel with 405 mm brake rotor

Integrated EPB Rear Wheel and Rotor Options

• 17 inch wheel with 330 mm brake rotor
• 18 inch wheel with 355 mm brake rotor
• 19 inch wheel with 355 or 380 mm brake rotor
• 20 inch wheel with 380 or 400 mm brake rotor

These wheel and rotor sizes are preliminary configuration ranges for inquiry screening, they do not guarantee fitment for every wheel with the same diameter, final clearance depends on the actual wheel and brake measurements

Vehicle Fitment Information Required

• Vehicle make and model
• Model year and trim
• Sales market or country version
• Full VIN
• Front axle or rear axle requirement
• Wheel diameter width and offset
• Wheel PCD and center bore
• Inner barrel and spoke clearance measurements
• Current brake rotor diameter and thickness
• Original caliper hub and mounting point photos
• EPB connector actuator and wiring photos for rear applications

The VIN helps identify the original vehicle configuration but it cannot confirm clearance for an aftermarket wheel, modified wheels must be checked using their actual width offset inner barrel and spoke measurements, clear photos or a wheel drawing may also be required before the final configuration is approved

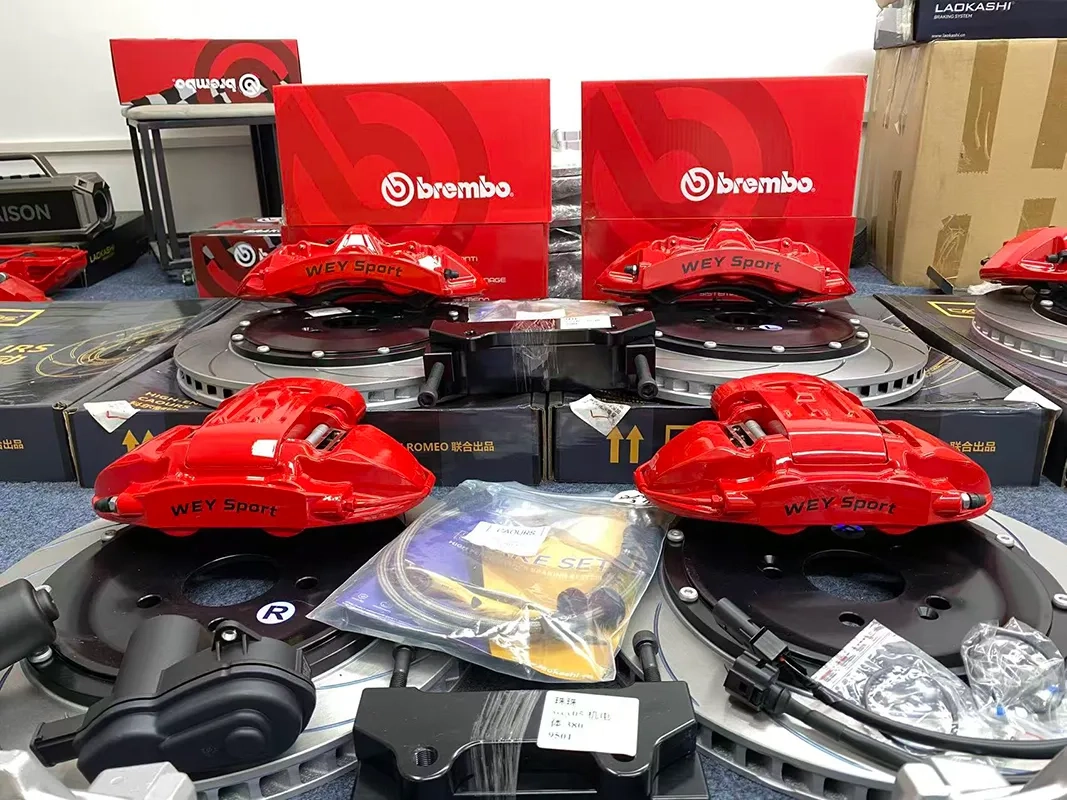

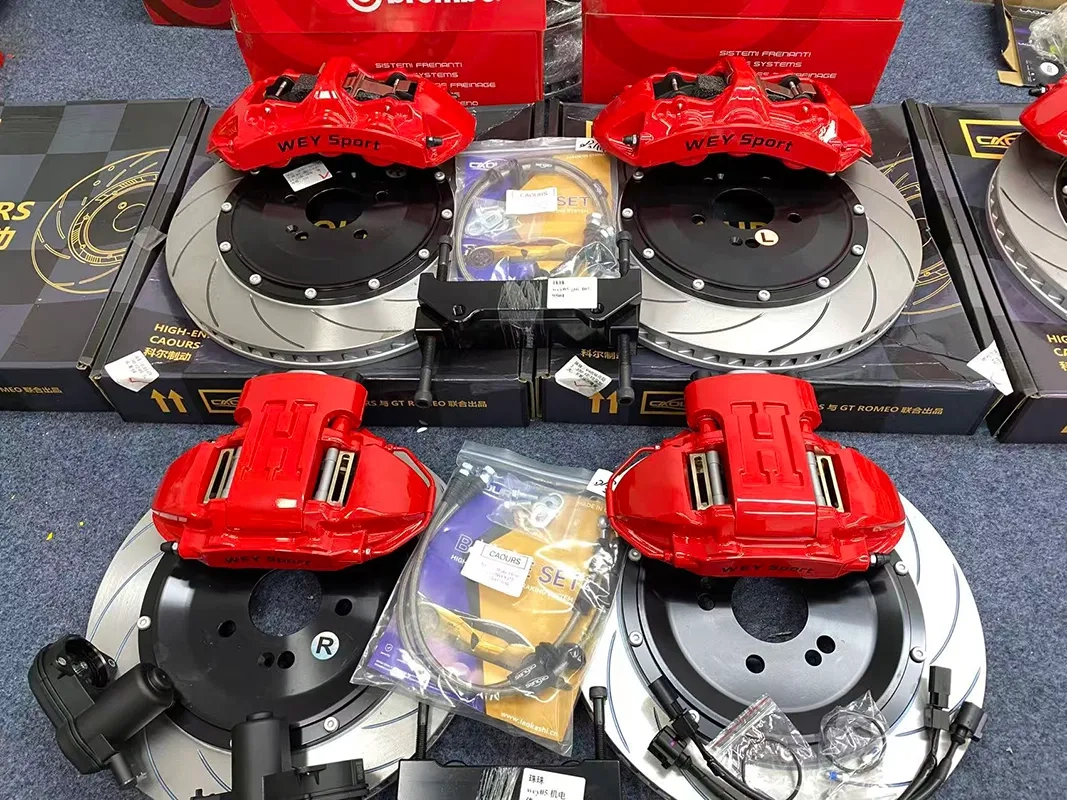

Included Components

• Brake calipers x2
• Brake pads x4
• Custom rotor hats and caliper brackets x2
• Brake hoses x2
• Brake rotors x2
• Brake fluid x1 according to the selected product model

The final package follows the confirmed front or rear axle configuration, buyers should confirm the replacement brake pad shape rotor specification seals hoses brackets and installation hardware before ordering, these details are also useful for workshops and distributors planning future maintenance or repeat purchases

Installation Requirements

Professional installation is required, the installer must confirm that the brackets sit correctly, the brake rotors rotate freely and the brake hoses do not contact the wheel suspension or body through the full steering and suspension range, the hydraulic system must be fully bled and inspected for leaks before road use

Integrated EPB applications may require a compatible diagnostic tool to enter brake service mode, release the actuator, perform calibration, exit service mode and complete a fault scan, the left and right parking brake functions must be tested after installation

Compatibility with ABS EBD ESP the master cylinder and the original brake balance must be reviewed for each vehicle, these functions cannot be confirmed only from the wheel diameter or VIN

Retail and Wholesale Information

• Minimum order quantity one set
• Production lead time 10 to 25 days after fitment approval
• Retail and wholesale orders accepted
• Standard export packaging
• Carton size 45 x 45 x 45 cm
• Gross weight 45 kg
• Warranty period 12 months

Fitment FAQ

Will this kit fit every vehicle with the listed wheel size

No, wheel diameter is only an initial reference, the VIN, rotor size, wheel width, offset, inner barrel and spoke clearance must also be checked

Can the GT6 option be used on the rear axle

The GT6 configuration on this page is intended for the front axle, rear electronic parking brake applications should use the approved integrated EPB configuration

Will the integrated EPB calipers retain the electronic parking brake

Only after the connector actuator control procedure and vehicle diagnostic requirements have been confirmed

Does the EPB version require coding or calibration

It depends on the vehicle, service mode calibration function testing and a post installation fault scan may be required

Can a wheel spacer solve a spoke clearance problem

A spacer may change spoke clearance but fastener engagement wheel position suspension clearance and body clearance must be checked separately

What information should be provided for a quotation

Provide the VIN vehicle details front or rear position wheel specifications current rotor dimensions and clear photos of the original brake system
