Porsche 18Z Big Brake Kit 355mm Rotors VW Audi Fitment

Porsche 18Z Front 6-Piston Rear 4-Piston Big Brake Kit — Complete Performance Brake Upgrade System

Product Overview

The Porsche 18Z big brake kit is a front 6-piston and rear 4-piston brake upgrade system designed for drivers who need more stopping power than their factory brakes can deliver. Originally engineered as the OEM braking solution on the Porsche Cayenne 955 and 957 (model years 2003 through 2010), this caliper-and-rotor package has earned a strong following in the aftermarket tuning community — not only among Porsche owners, but across a wide range of Volkswagen, Audi, and other VAG-platform vehicles. The kit is built around aluminum monoblock calipers paired with ventilated brake discs available from 330mm to 440mm, depending on wheel diameter. Whether you are replacing worn factory components on a Cayenne, Touareg, or Q7, or retrofitting a Mk5 Golf or B7 Audi A4 with a serious braking upgrade, this kit delivers the hardware to get it done. Every order is matched to the buyer’s vehicle through VIN verification before shipment, because brake fitment is not something we guess at.

Why the Porsche 18Z Big Brake Kit Works for So Many Platforms

The reason tuners and independent shops keep coming back to the 18Z platform is straightforward: it offers a genuine multi-piston brake architecture at a fraction of what a comparable new aftermarket system would cost. The front calipers use six staggered pistons (34mm, 36mm, and 38mm) in a monoblock aluminum casting — the same basic design principle found in Brembo’s motorsport-derived calipers. The rear uses a four-piston setup that keeps brake bias balanced without requiring a separate proportioning valve in most applications.

On the road, the difference is noticeable the first time you press the pedal with any real intent. Pedal modulation improves because the larger piston area spreads hydraulic pressure more evenly across the pad backing plate. Rotor heat management also improves, since larger discs — 355mm, 380mm, or bigger depending on your wheel size — have more thermal mass and better airflow than the smaller single-piston-slider setups found on many factory vehicles. For drivers who tow, carry heavy loads, or drive regularly in hilly terrain, this translates to less fade and more consistent performance when it matters.

From a maintenance standpoint, the 18Z calipers accept widely available pad shapes. Several major friction manufacturers produce street, sport, and light-track compounds in this pad pattern, so you are not locked into a single source for consumables. Replacement rotors are also straightforward to source, as the kit uses industry-standard bolt patterns and center-bore dimensions rather than proprietary hardware.

Technical Specifications

Front Calipers

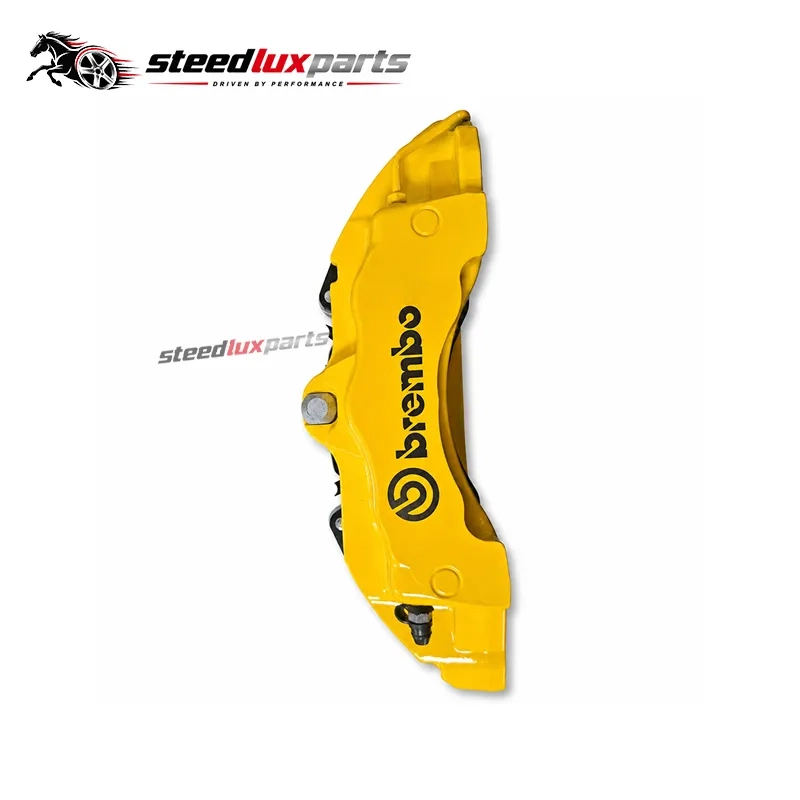

• Type: Cast aluminum monoblock, fixed 6-piston
• Piston diameters: 34mm / 36mm / 38mm (staggered, direction-dependent)
• Rotor compatibility: 330mm x 32mm to 440mm x 34mm (ventilated)
• OEM reference numbers: 955.351.421 (left), 955.351.422 (right) — suffix revisions include -.53 (silver) and -.22 (red)
• Weight: approximately 5.2 kg per caliper (bare, no pads)
• Mounting bolt center: 142mm (radial mount)
• Factory fluid inlet: M10 x 1.0 thread

Rear Calipers

• Type: Cast aluminum, fixed 4-piston
• Rotor compatibility: 330mm to 405mm (ventilated)
• Parking brake compatibility: check VIN — some applications require a separate mechanical or electronic parking brake solution

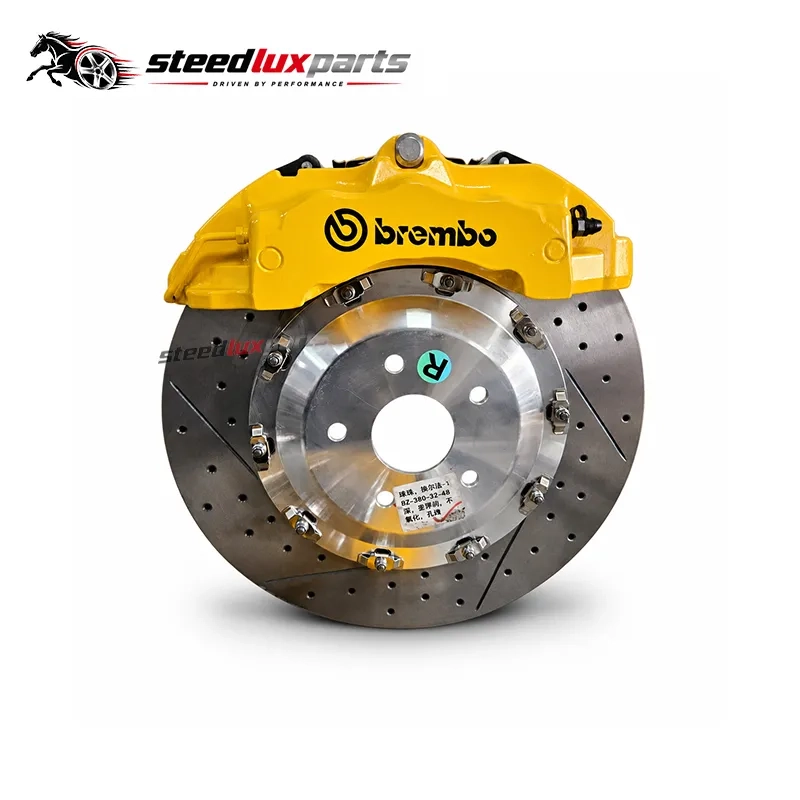

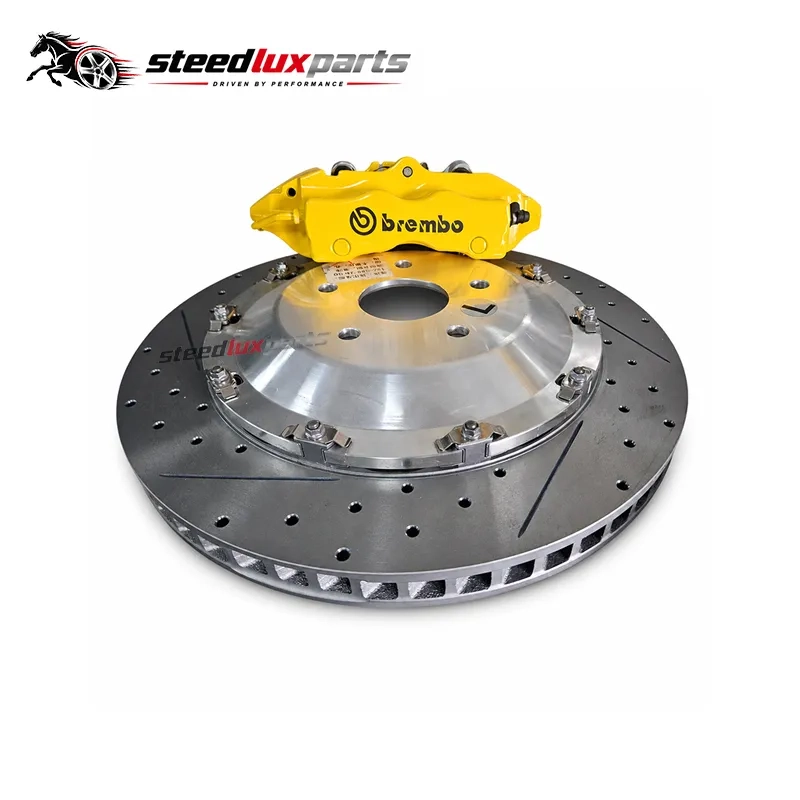

Brake Discs

• Material: Grey cast iron HT250, high-carbon formulation
• Construction: Ventilated, directional internal vanes
• Surface options: Plain, drilled, slotted, or J-hook pattern (specify at order)
• Center hat: 6061-T6 aluminum, hard anodized (selected rotor sizes)
• Mounting: Floating or fixed, depending on rotor size selection

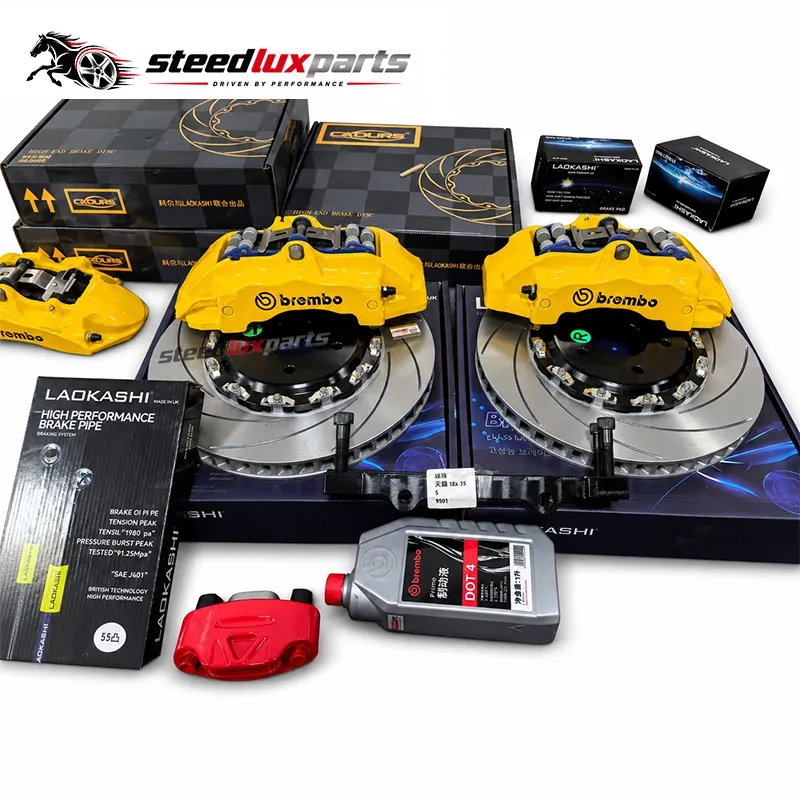

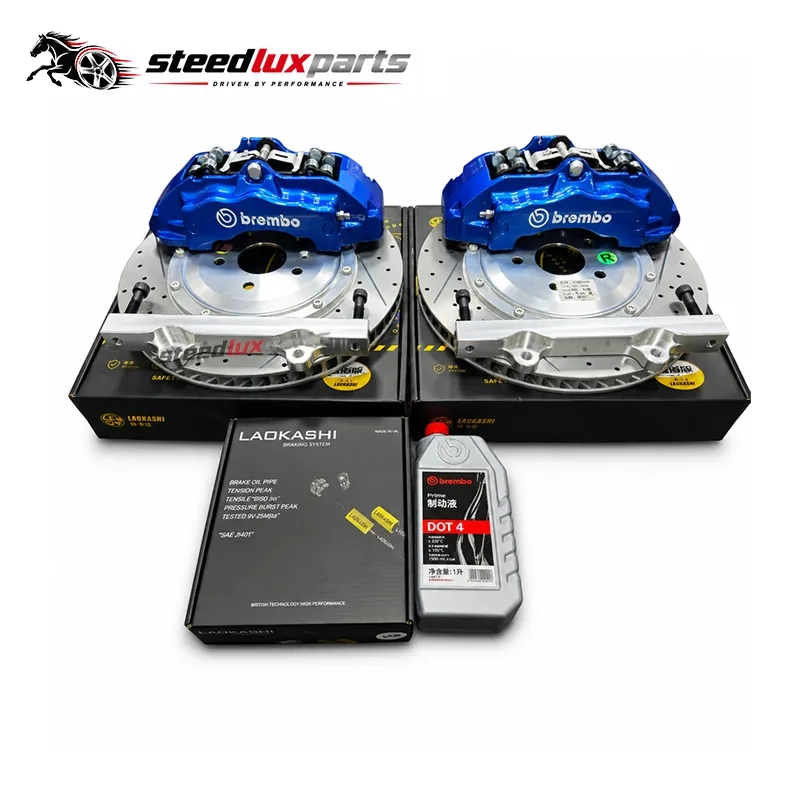

Kit Contents (standard per axle pair)

• 2 x aluminum monoblock brake calipers (left + right)
• 2 x ventilated brake discs
• 4 x brake pads (pre-installed in calipers)
• 2 x stainless steel braided PTFE brake lines
• Mounting adapter brackets (6061-T6 aluminum, where applicable)
• Caliper mounting hardware (bolts, washers)

Rotor Size by Wheel Diameter

Note: All rotor sizes are subject to VIN verification. The table above reflects the kit’s available configurations, not a guarantee of direct fitment on any specific vehicle without confirmation.

Fitment Information — Read Before Ordering

How We Confirm Fitment for the Porsche 18Z Brake Kit

Brake system compatibility depends on more than just the make and model of your vehicle. Production-year running changes, factory option codes, regional market specifications, and prior modifications can all affect whether a given rotor-and-caliper combination will bolt up correctly. For this reason, every order for the Porsche 18Z big brake kit is processed through a VIN verification step before the kit ships. Here is how the process works:

1. You provide the 17-character VIN of the vehicle that will receive the kit.
2. Our team checks the factory build data — including the original brake PR code, suspension knuckle type, and wheel specification — against the kit configuration you have selected.
3. If the selected rotor size, caliper orientation, and bracket kit match your vehicle, we confirm the order and it enters production or picking.
4. If there is a mismatch — for example, your factory knuckle uses 14mm caliper bolts while the 18Z caliper has 16mm mounting holes — we let you know what additional parts or modifications are needed before the kit can be installed correctly.

This step adds a day or two to the order timeline, but it prevents the much larger headache of receiving a brake kit that does not fit your car. It also means we can advise on common retrofit requirements upfront — such as hub-centric rings for Mk5/Mk6 Volkswagen applications using Mercedes-sourced rotors, or the crossover-pipe reversal needed when mounting Cayenne calipers behind the axle on an Audi sedan instead of ahead of it as on the original SUV application.

Vehicles This Kit Has Been Confirmed On (Through Customer Installations)

• Porsche Cayenne 955 / 957 (2003–2010) — S, GTS, Turbo, Turbo S (direct fit)
• Volkswagen Touareg 7L (2003–2010) — V10 TDI, W12 trims (direct fit)
• Audi Q7 4L (2006–2010) — V8 and high-output variants (direct fit)
• Volkswagen Golf / GTI Mk5, Mk6 (adapter bracket required)
• Volkswagen Jetta / GLI Mk5, Mk6 (adapter bracket required)
• Audi A4 B6, B7 (adapter bracket required; 14mm-to-16mm bolt accommodation needed)
• Audi A3 8P, S3 8P (via ECS Stage 5-style bracket kit)
• Audi TT Mk1 (via ECS Stage 5-style bracket kit)
• Volkswagen Passat B6 (adapter bracket required)
• Seat Leon, Skoda Octavia (adapter bracket required — check VIN)

Disclaimer: This list reflects customer-reported successful installations and our own fitment database. It is not a guarantee that every variant within a model line will fit without modification. The VIN verification step described above is the only reliable way to confirm fitment for your specific vehicle.

What Buyers Should Know Before Installing an 18Z Brake Upgrade

Forums are full of install threads, and we encourage buyers to read them. The 18Z platform has been around long enough that most common installation challenges are well-documented. Here are the issues that come up most often, based on real owner reports across Audizine, VWVortex, and Rennlist.

Wheel Clearance

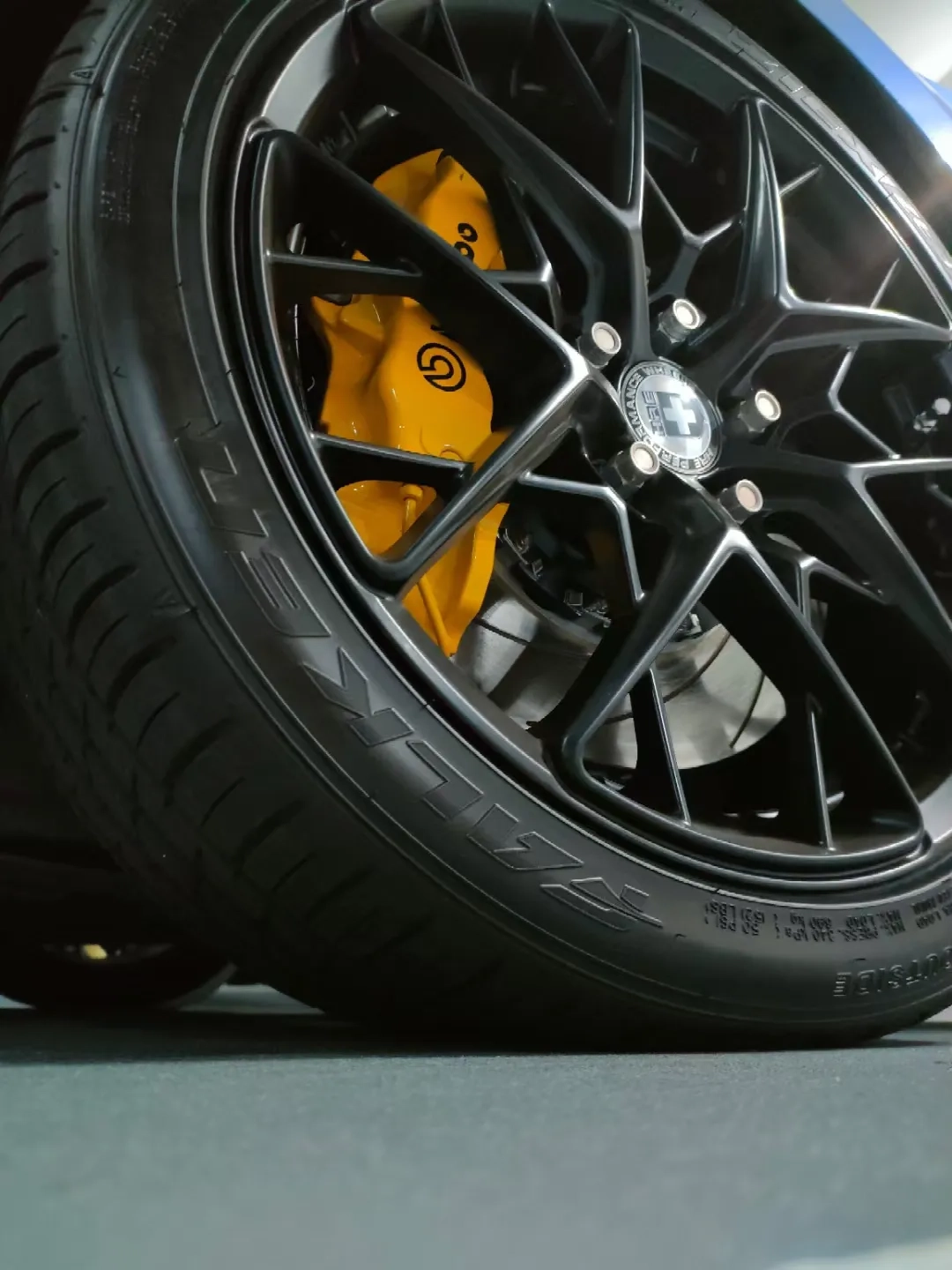

The 18Z caliper body is bulky. Even with 18-inch wheels — the advertised minimum — spoke design can make or break fitment. Some wheels that clear the rotor diameter on paper still contact the caliper face because of concave spoke profiles. We strongly recommend test-fitting or using a printable caliper clearance template before committing to a wheel and tire package. If you need to run spacers, factor that into your suspension geometry calculations.

Master Cylinder Compatibility

Switching from a single-piston floating caliper to a six-piston fixed caliper significantly changes the hydraulic volume requirement of the brake system. Some factory master cylinders — particularly on older or smaller-displacement vehicles — cannot move enough fluid to generate a firm pedal with the 18Z calipers. The result is a longer pedal travel that some drivers find acceptable and others do not. This is not a defect of the kit; it is a characteristic of mixing components from different brake system architectures. If pedal feel is a priority for you, plan for a master cylinder upgrade as part of your project budget.

Pad Knock and Anti-Rattle Hardware

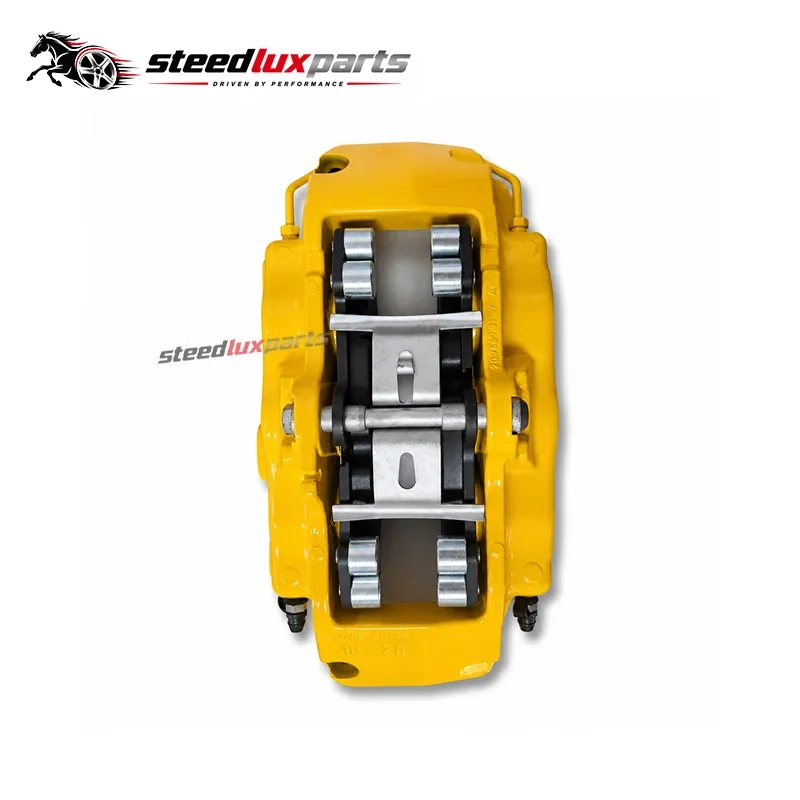

Pad clunk over bumps — especially after hard braking — has been reported by a subset of 18Z owners across multiple forums. The cause is typically one of three things: missing or improperly seated anti-rattle springs, pad backing plates that are slightly undersized for the caliper, or piston seals that do not retract the pistons enough after pedal release. Using OE-spec anti-rattle clips and checking pad dimensions against the caliper pad channel before installation resolves most cases. If the noise persists, a caliper rebuild may be warranted, particularly on used calipers.

Bleeding Sequence

The 18Z front caliper has two bleed screws — one on the inner half and one on the outer half. Both must be bled, and the correct sequence is inner first, then outer. If the calipers have been swapped side-to-side for a behind-the-axle mounting orientation (as is common on Audi sedan conversions), the crossover pipe and bleed screws must also be reversed; otherwise air will remain trapped in the upper portion of the caliper and cause a soft pedal regardless of how much fluid you push through.

Hub Preparation

Uneven pad deposits are frequently misdiagnosed as warped rotors. Before assuming a rotor is defective, clean the hub mating surface thoroughly — rust scale, old Loctite residue, or debris as small as a grain of sand between the hub and rotor hat will introduce measurable runout that translates directly to pedal pulsation. A wire brush, brake cleaner, and five extra minutes during installation prevent a lot of post-install troubleshooting.

Wholesale and Bulk Order Information

We ship the Porsche 18Z big brake kit to distributors, tuning shops, fleet operators, and importers across Europe, North America, Africa, the Middle East, and CIS markets including Kazakhstan and Ukraine. Whether you need one sample kit to evaluate quality or a container load for regional distribution, our order process is designed to be straightforward.

Order Quantities and Pricing

• Sample order: 1 set — available for quality inspection and fitment testing before committing to volume.
• Small wholesale: 10 sets and above — tiered pricing applies.
• Bulk wholesale: 50 sets and above — factory-direct pricing, custom packaging options, and priority production scheduling.

Customization

Custom caliper colors, rotor surface patterns (drilled, slotted, J-hook), and private-label branding are available on bulk orders. We can also configure kits to your market’s specific requirements — for example, rotor sizes optimized for the vehicle models most common in your region. Contact our sales team with your requirements for a detailed quotation.

Packaging and Logistics

Standard packaging is a neutral export-grade carton with foam inserts securing each component. Custom color boxes with your branding are available for orders of 50 sets or more. We ship FOB from major Chinese ports (Guangzhou, Shenzhen, Ningbo, Shanghai). Typical lead times are 5 to 7 working days for sample orders and 15 to 30 working days for bulk production, depending on order size and customization requirements. We can work with your preferred freight forwarder or arrange shipping on your behalf.

Documentation

Every shipment includes a detailed packing list and commercial invoice. Certificates of Origin (Form A, Form E, or general CO) and other export documentation are provided as needed for your country’s customs clearance. If your market requires specific brake system certifications, please let us know at the inquiry stage so we can confirm compliance before production begins.

Payment Terms

We accept T/T (bank wire), L/C for large orders, and select online payment platforms for sample orders. Standard terms are 30% deposit with order confirmation and 70% balance before shipment. Net terms may be available for established buyers after a successful trial order history.

Q1: What is included in the Porsche 18Z big brake kit?

Each axle-pair kit includes two aluminum monoblock calipers (left and right), two ventilated brake discs in your selected size, a set of brake pads pre-installed in the calipers, stainless steel braided PTFE brake lines, and all necessary mounting hardware and adapter brackets. A complete four-wheel kit includes both front and rear axle pairs.

Q2: Do I need to provide my VIN before ordering?

Yes. VIN verification is a required step before we ship any kit. This lets us check your vehicle’s factory brake configuration, knuckle type, and wheel specification against the kit you have selected. It adds a small amount of time to the order process but prevents the much larger problem of receiving a kit that does not fit your vehicle.

Q3: Will this kit fit my car if my model is not listed?

Possibly, but we need to check. The 18Z caliper platform has been successfully retrofitted to many vehicles beyond the original Cayenne/Touareg/Q7 application. If your vehicle is not on the confirmed list, send us your VIN and wheel specifications, and we will research fitment before you place an order. We prefer to tell you “it won’t work” before you spend money rather than after.

Q4: What wheel size do I need for this brake kit?

The minimum wheel diameter is 18 inches for the 330mm and 355mm rotor configurations. However, wheel diameter alone is not enough — spoke design and offset also matter because the 18Z caliper body is quite tall. We recommend test-fitting with a caliper clearance template or checking with your wheel manufacturer before finalizing your order. For larger rotor sizes (380mm and above), a 19-inch or larger wheel is required.

Q5: Can I use these calipers on the track?

The 18Z big brake kit is built for spirited street driving and can handle light track use with appropriate pads and fluid. It is not a dedicated racing brake system. If you plan to do regular track days, we recommend upgrading to a pad compound rated for sustained high-temperature use and monitoring rotor temperatures during sessions.
